NEW Hunza LED Path Lite Surface Mount

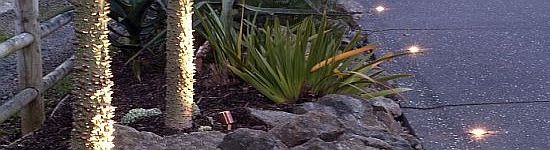

The Path Lite Surface Mount is ideal for lighting flat areas where a recessed fitting is not suitable. It is especially suited to decks, paved courtyards, and edge lighting paths.
![](http://www.lightideas.co.uk/newsletters/2013-08-08-path-lite-surface-mount/image01.jpg) This LED - coupled with a frosted Borosilica dome glass lens - produces little-to-no glare through 1, 2, 3 or 4 facets. The lens has been developed to prevent dirt, mud, grass clippings or water from entering the optics area, keeping with its IP66 rating.
![](http://www.lightideas.co.uk/newsletters/2013-08-08-path-lite-surface-mount/image02.jpg) The Hunza PURE LED system uses Cree MT-G chips for maximum performance and long life. There is an external remote (series connection) driver option also.
The PURE LED system also incorporates HUNZA’s Plug-and-Play system for easy replacement of either the LED engine or integral driver in the field. Four beam angles, and a choice of a Warm or Cool White colour temperatures are available.
|
|
|

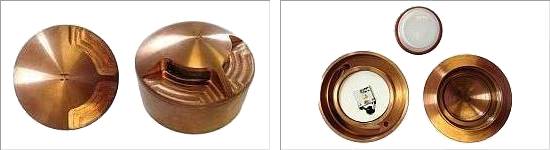

Luminaire Construction
CNC machined from one of the following metals:
Copper Body: 88mm (3½") x 9mm (13/32")
Flange 88mm (3½") solid copper rod
316 Stainless Steel Body: 88mm (3½") x 9mm (13/32")
Flange 88mm (3½") solid 316 stainless steel rod
Mounting
The luminaire is secured to the ground by three mounting screws
|
|
Path Lite Features
Lens: 3mm (1/8") thick froster Borosilica dome glass with a Lifetime Warranty
Gaskets: Silicone, iron impregnated 220°C (428°F)
LED: Cree MTG Plug and Play, field replaceable PCB board
Lumen Output: 415
Lumens Per Watt: 65
Warm White CRI: 85+
Driver: Integral 1000mA Plug and Play, field replaceable and dimerable
Accessories: Cable Joint Kit (Cat. CJK150). Not approved for USA/Canada
|
|
Product Specifications
Standards: EN60598 IP68 Ul1838
Weight: Copper 1.30kg (2lb 12oz) / Stainless Steel 1.00kg (2lb 2oz)
Power Supply For Driver: HUNZA™ Inground or Wall Mount Transformer not included
12v AC/DC Driver: HUNZA Plug and Play Driver
Input: 12 vac / vdc 7 watt
Output: 6.4 dc 1050mA Dimmerable
Light Source: LED - CREE MT-G 6.4 watt Plug and Play board
|
|
|
