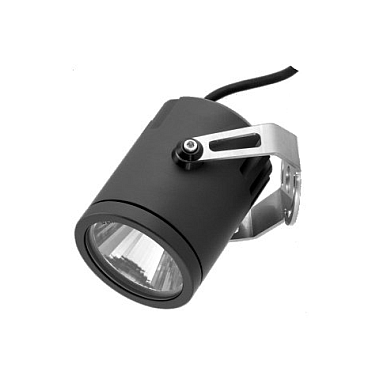

The Ultra 35 Spot has been designed to be mounted on vertical surfaces as well as in soil with the Spike accessory. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements. It has a fully adjustable head allowing 360° rotation and 0-120° elevation and can then be fixed in place using the inbuilt locking mechanism.
Also available:
FINISHES
ECO MATT POWDERCOAT COLOURS
| LED Chip: | Cree CXA 1830 Plug and Play field replaceable LED |
| Output: | 2700 lumens @ 700mA |
| Lumens Per Watt: | 100 lumens @ 26 watts |
| Colour Temp: | 2700K, 3000K, 4000K |
| CRI Warm White (3000°K): | 80 Standard, 90+ Optional |
| Beam Angles: | 13°, 20°, 25°, 34° |
| Ingress Protection: | IP66 |
| Standards: | BS/EN 60598.2.2, CE, UL 2108 |
| Power Supply: | Remote (Series) Driver, Retro 110/240 volt driver |
SPEC SHEETS
Ultra 35 SpotINSTRUCTIONS
Ultra 35 SpotPHOTOMETRICS
Ultra 35 Spot 13°Ultra 35 Spot 20°Ultra 35 Spot 25°Ultra 35 Spot 34°
