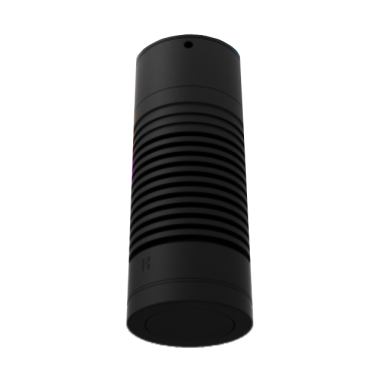

The High Power Down Lite Ceiling Mount RGBW is suitable for surface mounting on ceilings using a 3 bolt internal flange system. This luminaire is water-resistant with a 63.5mm diameter mounting base.
All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection and each RGBW unit comes with its own remote mounted DMX driver.
FINISHES
ECO MATT POWDERCOAT COLOURS
LED COLOURS
| LED Chip: | LED ENGIN LZP RGBW field replaceable LED board |
| Output: | 1000 total Lumens @ 250mA |
| Lumens Per Watt: | 54 Lumens minimum @ 20 watts |
| Colour Temp: | RGBW (White CCT 6500) |
| Beam Angles: | 15°, 30°, 40°, 70° |
| Ingress Protection: | IP66 |
| Standards: | AS/NZS 61046, EN60598, UL 1838, CSA 22.2 No. 250.7, CE |
| Power Supply: | Supplied by Hunza: ELDOLED Powerdrive 4 channel / Input: 120-277VAC / Output: Set at max. 250mA / Control: DMX |
SPEC SHEETS
High Power Down Lite Ceiling Mount RGBWINSTRUCTIONS
High Power Down Lite Ceiling Mount RGBWPHOTOMETRICS
High Power Down Lite Ceiling Mount RGBW
