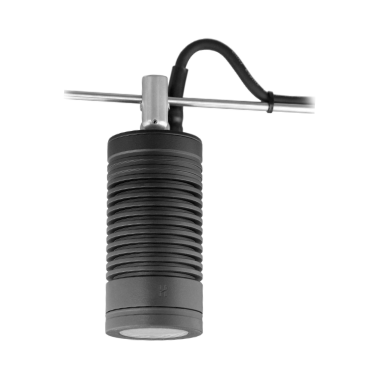

The High Power Catenary Mount RGBW has been designed to add vitality and a POP of colour for transverse suspension lighting systems. This provides a dynamic moonlighting effect and can be used for illuminating pathways, streets, and walkways.
All Hunza High Power products have an extra powdercoat layer to ensure maximum corrosion protection and each RGBW unit comes with its own remote mounted DMX driver.
FINISHES
ECO MATT POWDERCOAT COLOURS
LED COLOURS
| LED Chip: | LED ENGIN LZP RGBW field replaceable LED board |
| Output: | 1000 total Lumens @ 250mA |
| Lumens Per Watt: | 54 Lumens minimum @ 20 watts |
| Colour Temp: | RGBW (White CCT 6500) |
| Beam Angles: | 15°, 30°, 40°, 70° |
| Ingress Protection: | IP66 |
| Standards: | AS/NZS 61046, EN60598, UL 1838, 2108, 1598, CSA C22.2 No. 250.7, 250.0-08, 250.0, CE |
| Power Supply: | Supplied by Hunza: ELDOLED Powerdrive 4 channel / Input: 120-277VAC / Output: Set at max. 250mA / Control: DMX |
SPEC SHEETS
High Power Catenary Mount RGBWINSTRUCTIONS
High Power Catenary Mount RGBWPHOTOMETRICS
High Power Catenary Mount RGBW
